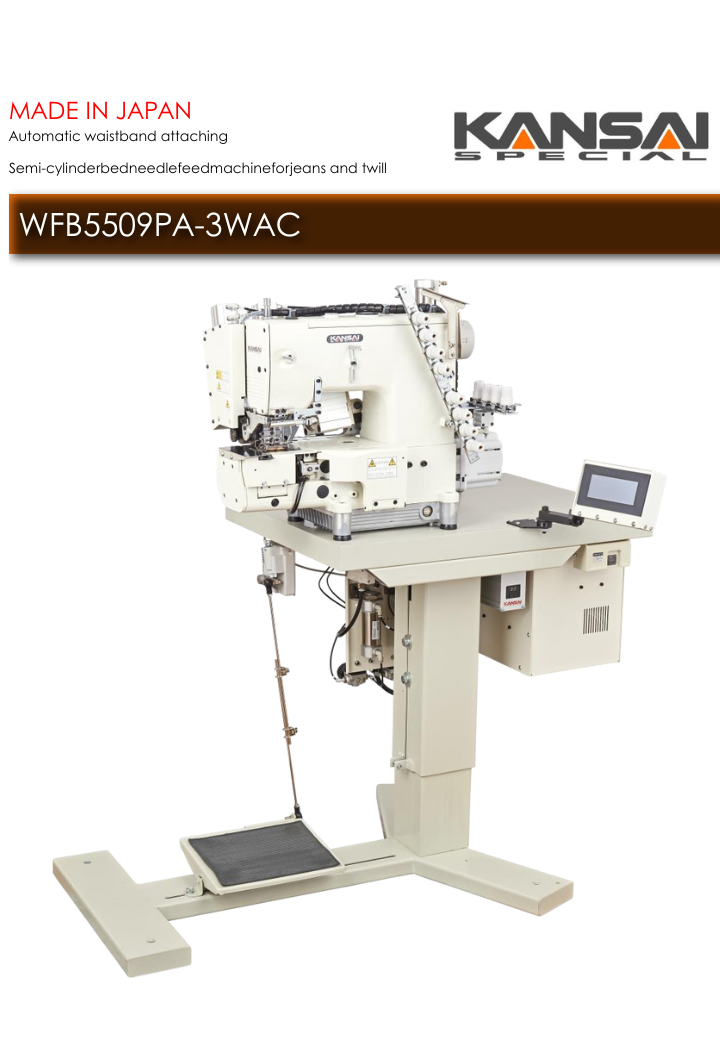

Kansai Special WFB5509PA-3WAC – Automatic Waistband Attaching Machine
Description
Kansai Special WFB5509PA-3WAC is a semi-cylinder bed, double chain-stitch waistband sewing machine built to handle heavy-duty materials like jeans, twill, and workwear.
With automatic skip-stitch, fabric cutter, and synchronised needle-feed technology, this model delivers double productivity at half the labor cost, making it the ultimate waistband-sewing solution for high-output garment factories.
🔹 Key Product Features
• Automatic Skip Stitch & Fabric Cutter — The optical edge sensor enables automatic “ON/OFF” control for skip-stitching and waistband cutting.
• Needle-Feed Mechanism — Ensures strong, consistent feeding on heavy fabrics.
• Rear Puller with Pulse Motor — Allows adjustable feeding patterns depending on fabric type.
• Double Puller System — Maintains smooth, accurate material movement.
• LCD Touchscreen Operation — Easy adjustment for skip-length and cutting control.
• Special Gauge Options — Custom gauges (1/8″×4–7/8″, 1/8″×3) for diverse waistband widths.
• Independent Spreader — Simplifies maintenance and part replacement.
• 850 W Direct-Drive Motor — Increases torque and efficiency for demanding operations.
Perfect for:
Jeans & Denim Pants, Workwear, Trousers & Casual Bottoms,Waistband sewing on medium-to-heavy materials
⚙️ Technical Specifications
Model WFB5509PA-3WAC
Application Waistband Attaching
Material Medium to Heavy
Needle Type DV × 57 (#14–25)
Number of Needles 6 (9 needle holes)
Stitch Type Double Chain Stitch
Gauge 1/8″×4 – 7/8″ / 1/8″×3
Skip Stitch Control Automatic (Optical Edge Sensor)
Feed Mechanism Needle + Rear Feed (Pulse Motor)
Max Sewing Speed 3,000 rpm
Motor 850 W Direct-Drive Motor
Made in Japan
Efficiency & Benefits
• Increases production output up to 2× faster than manual systems.
• Reduces fabric distortion with synchronized needle and feed motion.
• Minimizes operator fatigue while maintaining premium stitching accuracy.
• Ideal for industrial production environments in Bangladesh’s RMG sector.
📞 For inquiries or purchases: +8801729745891
📍 Available now at Glory Trade Centre Ltd.
🌐 Website: glorytradebd.com
