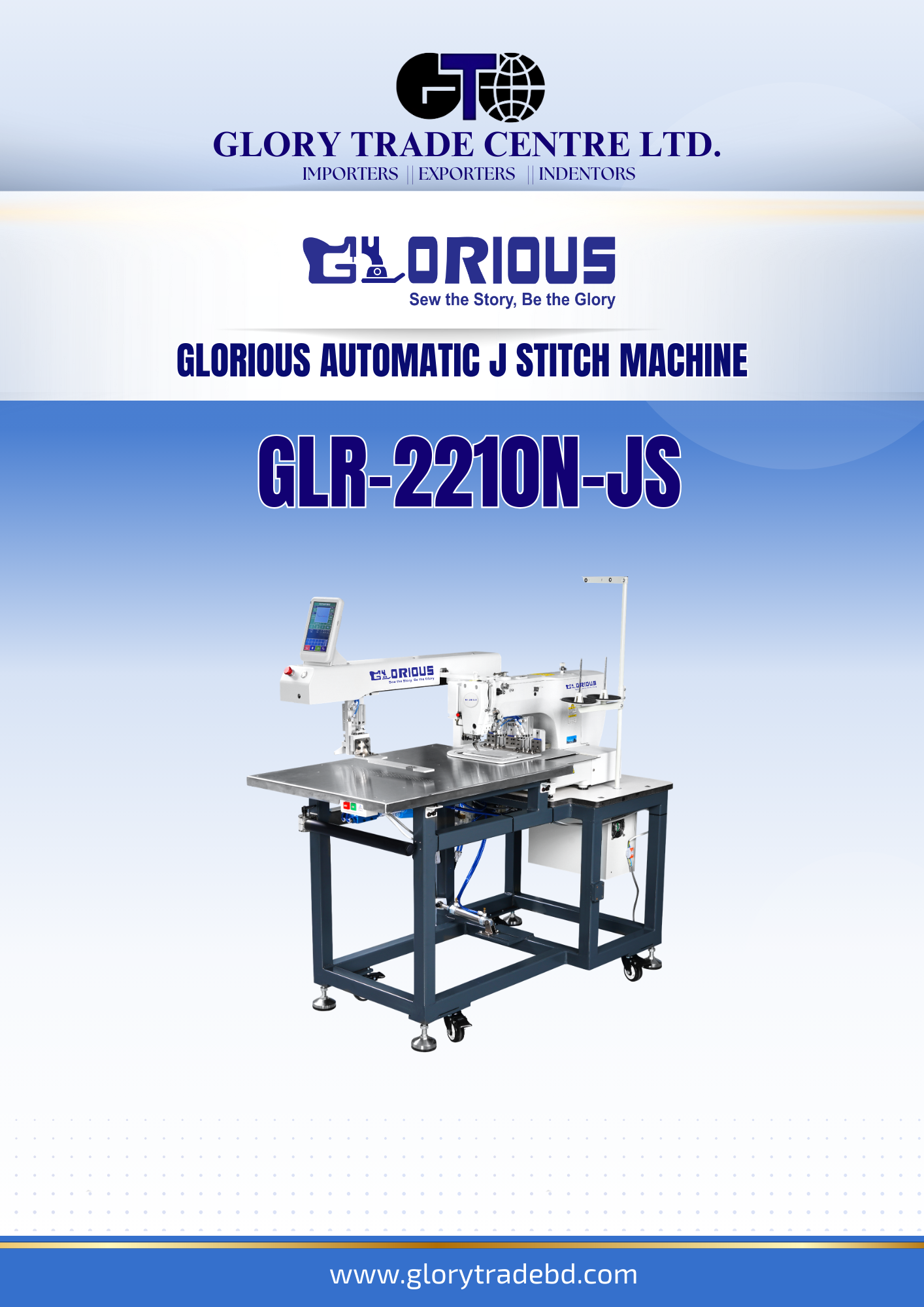

Glorious GLR-2210N-JS Automatic J-Stitch Machine

Description

The Glorious GLR-2210N-JS Automatic J-Stitch Machine is a high-performance industrial solution developed to automate J-stitching operations on jeans pockets, casual pants, and trouser components. Featuring a 2210 direct-drive electronic pattern sewing head and UBT intermittent feeding system driven by pulse motors, the machine integrates positioning, clamping, stitching, and fabric receiving into a single automated cycle. Its intelligent clamp mechanism automatically adapts to various stitch sizes and pattern layouts, eliminating skilled-labor dependency while delivering up to fifty percent higher productivity than traditional manual processes. Designed for continuous factory environments, the GLR-2210N-JS ensures uniform stitch formation, reduced rework, and consistent production quality.
Technical Specifications:
• Model: GLR-2210N-JS
• Machine head: 2210 direct-drive electronic pattern sewing unit
• Stitch formation: Single lockstitch
• Feeding system: UBT intermittent feeding (pulse motor drive)
• Needle type: DP×17 (#16–19)
• Stitch length: 0.05–12.7 mm
• Max sewing speed: 2800 rpm
• Max stitch area: 70 mm (W) × 215 mm (L)
• Production capacity: 1500–1800 pcs / 10 hours (fabric-dependent)
• Motor: AC servo 750 W
• Power supply: 220V
• Air pressure: 0.5 MPa
• Package size: 1400 × 740 × 1300 mm
• Net weight: 231 kg

📞 For inquiries or purchases: +8801729745891
📍 Available now at Glory Trade Centre Ltd.
🌐 Website: glorytradebd.com
