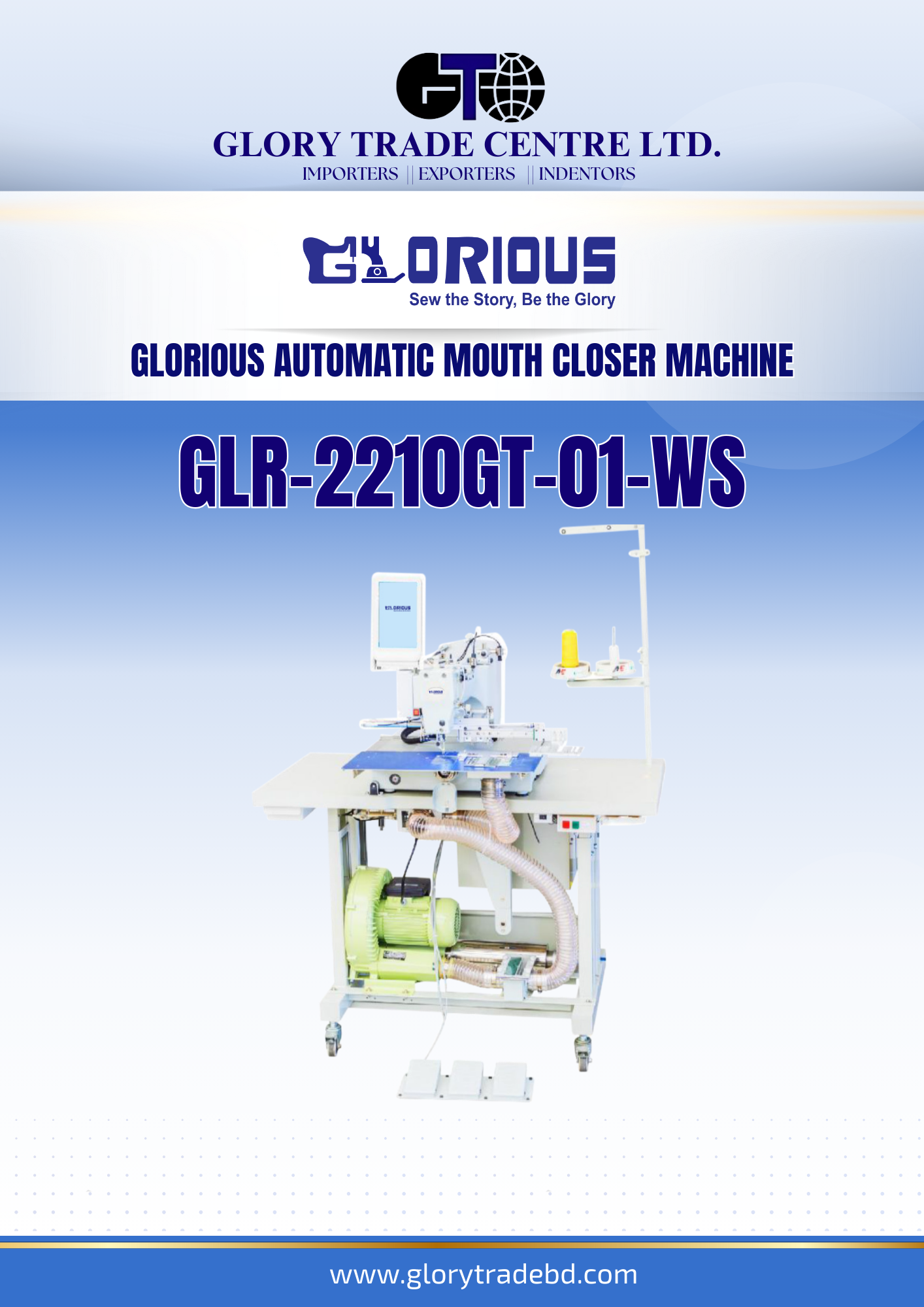

Glorious GLR-2210GT-01-WS Automatic Mouth Closer Machine

Description

The Glorious GLR-2210GT-01-WS Automatic Mouth Closer Machine is an industrial garment-finishing system designed to automate waist opening and mouth-closing operations with high positional accuracy and consistent stitching quality. Equipped with a precision cursor positioning system and AC servo motor drive, the machine ensures stable sewing speed and accurate seam formation across extended production shifts. Its intelligent shaping technology improves final garment appearance, while manual folding support allows flexibility for different waist and mouth structures. An automatic discharge mechanism reduces handling time between cycles, lowering labor dependency and improving overall line efficiency in trouser and formalwear production environments.
Technical Specifications:
• Model: GLR-2210GT-01A/WS
• Sewing line: Single-needle flat seam
• Max sewing speed: 2800 rpm
• Stitch range (X×Y): 200 × 100 mm
• Feeding system: Intermittent feeding (pulse motor drive)
• Stitch length: 0.05–12.7 mm
• Max needle number: 20,000 stitches/pattern
• Work clamp height: HSM max 25 mm / HMW max 30 mm (fabric-dependent)
• Two-step presser: Divided presser foot
• Lifting amount of front/intermittent foot: 22 mm
• Stroke by intermittent presser foot: 0–10 mm (factory default 3 mm)
• Hook type: Double shuttle hook
• Thread wiper: Standard
• Cutting device: Standard
• Data storage: USB
• Motor: AC servo 750 W
• Machine size: 1200 × 1300 mm
• Packing size: 1400 × 1000 × 1400 mm
• Weight: 170 kg
• Power supply: Single-phase 220V / three-phase 380V
• Air pressure: 0.5 MPa
